As an R&D engineer specializing in disposable hygiene machinery for 8+ years, I get the same question from nearly every global client: why do diaper production machines with the same advertised peak speed perform so differently in real factory operation?

The truth is, peak speed means nothing if your line cannot run 24/7 without dropping quality, or if 3-5% of your raw material ends up as scrap.

At DNW Machine, we design every diaper machine, sanitary napkin line and adult diaper production system around real-world performance: stable long-term output, consistent finished product quality, and minimal downtime. Below is our full technical framework for delivering on these promises.

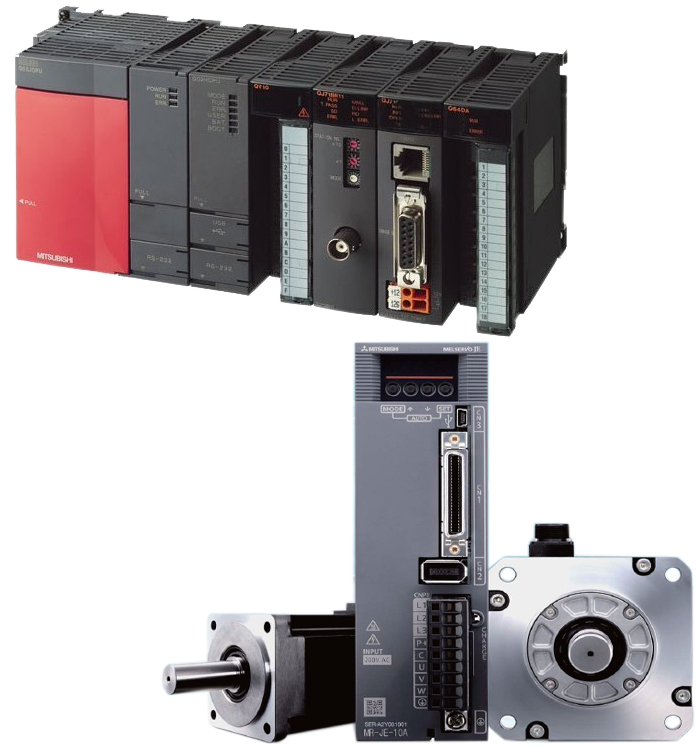

1. Core Control Brain: PLC Bus System + Multi-Axis Servo Synchronization

Our full-servo diaper production machines use an industrial PLC control system with EtherCAT bus communication, powering independent servo motors for every single process station (unwinding, lamination, cutting, sealing, conveying, etc.). The system schedules all axes with millisecond-level response, achieving ±0.1mm position synchronization accuracy across the entire line.

1. Unlike mechanical gear transmission, there is no cumulative wear or backlash, so alignment and sealing quality stay consistent even at full rated speed.

2. Built-in PID closed-loop tension control automatically adjusts motor output as material rolls empty, eliminating speed shocks and tension fluctuations during startup, shutdown and continuous operation.

3. All process parameters are digitally stored in the PLC system. You can recall saved settings for different product sizes with one click, removing human error from changeovers and guaranteeing batch-to-batch quality consistency.

For factory operators, this means your line can run at 95%+ of its rated speed around the clock — not just for a 10-minute demo. Your actual daily output will match our quoted capacity, not a theoretical lab number.

2. Precision Process Units: Eliminating the Top Causes of Defects

Most scrap in hygiene product production comes from four common failure points. We address each with dedicated precision control technology:

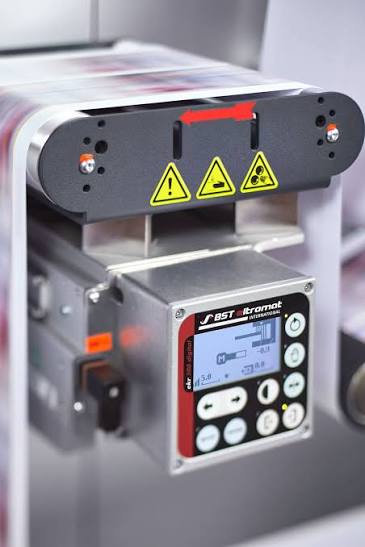

Servo Guiding System

Material misalignment is the #1 cause of defective diapers and sanitary napkins, leading to off-center leak guards, uneven back sheets and misaligned seals.

We install multi-stage servo guiding systems at all key material nodes (unwinding, lamination, slitting) with photoelectric/ultrasonic sensors.

The system detects edge position in real time and adjusts the roll position automatically, with guiding accuracy of ±0.2mm — even for thin, stretchable nonwoven materials.

Metered Hot Melt Glue Application

Uneven gluing causes leaking products, weak seals and sticky residue — all fatal flaws for hygiene goods.

Our glue system uses servo-driven precision gear pumps and zone-controlled constant-temperature glue guns, with millisecond-level valve response.

Glue temperature is held within ±1°C, and volume is controlled to ±1% accuracy across the entire production speed range. An inline glue break sensor triggers an immediate PLC alarm if the line clogs, preventing bulk material waste.

Servo Flying Shear & Constant-Pressure Welding

Rough cuts and weak seals are common complaints about low-cost high-speed machines.

Our cutting and welding rollers each have dedicated servo motors with flying shear functionality, matching roller line speed 1:1 with web speed at all times.

This keeps cut length error within ±0.5mm, with clean, burr-free edges. The welding roller uses independent zone temperature control and elastic pressure structure to deliver consistent seal strength, with no burnt material or weak bonds.

Volumetric Core Forming

Uneven core weight leads to inconsistent absorption performance, a key quality marker for diapers and under pads.

Our pulp and superabsorbent polymer (SAP) application unit uses servo metering rollers and negative pressure adsorption, controlling core gram weight deviation within ±3% per piece.

This guarantees every product meets absorption specifications, with no core shifting or clumping.

3. Mechanical Foundation: High-Rigidity Modular Structure

Even the best control system cannot compensate for a poorly built frame. Our machines are engineered to hold precision for years, with easy maintenance built into the design.

1. The full machine frame uses welded steel plate with stress relief annealing, delivering high rigidity and minimal deformation. Vibration is extremely low at full speed, preventing accelerated part wear and alignment drift.

2. Every process unit is built as a standalone calibrated module, with core rollers manufactured to 0.02mm coaxiality and parallelism tolerances. This eliminates cumulative assembly error common in piece-built machines.

3. Our modular design also simplifies maintenance, repair and upgrades: you can replace a worn module or add new features (such as 3D leak guards) without full disassembly or recalibration of the entire line, cutting maintenance downtime by over 70%.

4. All core transmission parts (bearings, guide rails, timing belts, gearboxes) use internationally recognized brands, reducing long-term wear and ensuring spare parts are readily available in your local market.

4. Closed-Loop Quality Assurance & Pre-Shipment Validation

We do not just promise performance — we verify every machine before it leaves our factory.

1. An inline machine vision system inspects every finished product for size deviation, missing materials, stains, sealing defects and core unevenness, automatically rejecting defective pieces to ensure no bad products reach packaging.

2. The PLC system monitors all process parameters (temperature, pressure, tension, speed) in real time, triggering alarms or automatic speed reduction if values fall outside acceptable thresholds, catching issues before they cause bulk scrap.

3. Every machine undergoes a 72-hour no-load running test, by a 24-hour full-load production test with standard raw materials. We provide an official factory test report with measured stable speed, defect rate and precision data, so you know exactly what you are getting.

4. We can also pre-calibrate parameters for your specific raw materials and product specifications, so the line can reach full production shortly after installation on site.
